How to Build a Concrete Patio with Bluestone Inlay (Complete Guide)

How to Build a Concrete Patio with Bluestone Inlay (Complete Guide)

by Ethan Hagan (email Ethan) | | December 15, 2011 | 20 Comments »

We’re really excited to share this step-by-step guide for building a concrete patio with a decorative bluestone border. We partnered with Joe Bianco, President of SDG Home Solutions, to document how a contractor and their crew would tackle this home improvement project.

This article shares pictures and tips covering everything from demolition to the finishing touches. We hope it’s a great resource for you, especially if you’re considering a new concrete patio in the near future.

Concrete Patio Remodel

Here’s Joe introducing the project and sharing why his crew is demolishing the existing patio.

The Challenge with This Patio

If you missed it in the video, the problem with the existing concrete patio is that it slopes toward the house. That is a huge problem, because water from rain and melted snow has been pooling against the foundation of the home. Recently, that water found its way into the basement, creating a serious mold problem.

Tip: If you see water pooling against your home, immediately take steps to re-grade the area or install appropriate drainage. Water damage can be extremely expensive to fix, especially if mold growth starts.

The homeowners, Rick and Patricia, first noticed the water infiltration in September, 2011 after hurricane Irene brought heavy rain to Maryland. They’ve already gone through an extensive interior mold remediation process involving high-ozone shock treatments. Now, they’re ensuring the problem never happens again by fixing it at its source: the poorly graded patio.

The Plan for the New Patio

The plan is to remove the existing concrete patio and pour a new one with the appropriate slope, adding a decorative bluestone inlay around the perimeter. Joe’s crew will also be adding a small grilling area adjacent to the patio.

Window Wells: If you look closely at the pictures above, the top of the window wells are at the same level as the patio. Ideally, they would be a few inches taller to better prevent water from entering the window well. An unexpected twist for this project is that the house framing juts out about 3″ over top the existing patio and window wells. That prevents Joe’s crew from making any modifications to the window wells without significant additional effort and associated high cost. However, with the patio’s downward slope, window well covers, and gravel in the base of the wells for drainage, Joe’s team is confident water will not be an issue.

Railings: The existing railing posts are right up against the concrete. As the wood in these posts expands and contracts, moisture becomes trapped, resulting in wood rot. IRC code dictates railings when there’s a 30″ or more drop. The new patio will be significantly less than that, so the homeowners opted not to incorporate a railing on the new patio.

Step 1: Demolish the Existing Patio

With pneumatic jackhammers and sledge hammers in tow, the crew began the demolition process, putting all the large waste in a 10 yard, roll-off dumpster. For a concrete pad of this size, you’ll find rebar and wire mesh embedded in the concrete for increased tensile strength.

Tip: You can rent an electric jackhammer from your local tool rental store. These tools are relatively simple to use and will save you a lot of time during demolition.

Tip: In most areas, you can arrange for a roll-off dumpster of various sizes. Be sure to specify you’ll be loading the dumpster with concrete before you buy, so you can understand any weight limits.

The crew was able to salvage the rebar, and it will be reused for the new patio, eliminating some of the materials cost and preventing otherwise useful metal from entering the dump (or even being recycled, which still has a cost).

Tip: If existing rebar can be preserved after demolishing a patio, it could represent a savings of more than $150.

Likewise, some of the crushed rock will be reused underneath the new patio to establish a strong base.

Step 2: Plan the New Patio

Now that the large chunks of concrete have been removed, the crew began planning the layout for the new patio.

Starting at the inside corner of the house and at the same level as the previous patio, they marked a level line on the foundation of the house. The level line is perfectly level across the foundation.

In this picture, which shows the edge of the patio away from the house, the blue line indicates the top of the new patio.

Joe determined he wanted a 2″ drop over the entire 15′ length to facilitate runoff, which is why the blue line is 2″ below level. You can also clearly see how the old patio had about 1″ rise over the level line, forcing water to run towards the house on the original patio.

Tip: On average, a 1″ drop for every 8′ will provide sufficient runoff for a patio.

Now that the crew has established the slope, they ran another line to create the front edge. It’s important to note that the slope only occurs in one direction (rather than falling away from the house in two directions, which would create an un-level front). For that reason, this front edge is completely level. A string level would be helpful for this process, but you can manage without one.

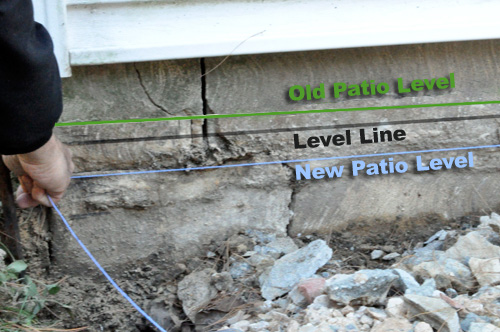

This first picture shows the string attached to the house at the level line for the front of the patio.

And this picture shows the string at the other corner of the front of the patio. The crew member is checking the string for level, as this will string will serve as a guide for the forms.

The crew continued placing stakes and running lines around the perimeter, as well as where the bluestone inlays would occur (because the concrete around the perimeter inlays will need to be a different height until filled with the surface stone and mortar). All the front-to-back lines had the same 2″ slope away from the house, and all the side-to-side lines were level.

Step 3: Build the Forms for the Concrete

These string lines serve two purposes. First, they determine where the crew needed to add or remove dirt to achieve a uniformly 4″ thick pad. If the pad is thicker, the homeowners are paying for unnecessary concrete, and if the pad is thinner, the concrete is too weak.

Second, the lines act as guides for building the forms. You can see in the picture how the top of the form is at the same height as the line. The easiest way to achieve this is by building the forms to the correct dimensions and using wooden stakes attached to the forms, supporting them at the correct height.

Tip: Stakes for forms are available near the concrete and lumber sections in most home improvement stores.

Tip: Sometimes concrete patios will heave and shift with moisture changes in the soil. For that reason, most patios should be poured with a 4″ gap below the siding to prevent buckling.

Fortunately, the original slab sat on that soil for about 20 years and never heaved, so that’s not a concern here.

Tip: For even more pictures about building concrete forms, check out another how-to about pouring a concrete shed base. In that article, we share tips for building the form, making sure it’s square and anchoring it at the appropriate height.

This picture illustrates the perimeter of the inner patio (which will have a surface of concrete), and the outer perimeter (which will be poured 1.5 inches lower so that the bluestone can be installed in a mortar bed).

The crew also also compacted the dirt to prevent voids from forming as a result of the weight of the concrete.

Tip: Compacting dirt is an important step in the process. Failing to compact the dirt could lead to weak spots in the concrete, and ultimately, cracks. Don’t skip this relatively simple step in your own patio remodel.

Step 4: Install a Waterproof Barrier

Next, Joe’s crew installed a waterproof membrane called Vycor. Vycor is not the least expensive material, but it’s worthwhile because concrete will erode the alternative metal flashing over time. An asphalt-type membrane will last much longer, and it’s code approved for this area. The waterproofer has a sticky side that adheres to the foundation. (It must be clean and dry before starting). Joe’s crew overlapped all edges by at least 2″ and let the bottom edge curl under the soon-to-be-poured concrete.

With the siding this close to the patio, in most situations, the bottom few courses of siding would be temporarily removed and the Vycor membrane would be lapped behind the siding to prevent water infiltration. If you recall, this side of the house extends out from the foundation a few inches, and the siding hangs down about 2 inches lower than the structure behind. This creates a drip edge that will prevent water from “wicking” up the structure behind the siding.

Step 5: Lay Rebar

Before scheduling the concrete truck, Joe’s crew reused all the rebar from the original patio, securing it with rebar ties. Concrete has very good compression strength (resistance to being pushed together) and very poor tensile strength (resistance to being pulled apart). Placing rebar, wire mesh, and/or adding fibers to the concrete mix greatly improves the tensile strength of concrete, helping to prevent cracks.

For more information about the characteristics of concrete, check out the basics on Wikipedia. The crew had an abundance of rebar at hand, and they decided to use it all, creating squares approximately 2′ x 2′.

The concrete truck arrived the next day. This specific provider mixes all the concrete on site, and can incorporate admixtures like accelerant, air entraining admixtures, and reinforcing fibers on request. The truck can measure exactly how much concrete was used, so the homeowner isn’t paying any extra for unused product.

This patio is about 400 sq. ft. and 4″ thick, and it required 4.5 yards of concrete. The crew added accelerant, which reduces the risk of damage by freezing from cold weather.

Here’s a really short video showing how the sand and rock are fed into mixer “on-demand”.

Step 6: Spread the Concrete

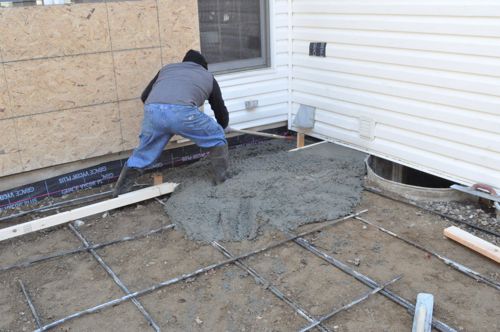

From the truck, the crew wheeled the concrete over to the forms. They made a small ramp for the wheelbarrow with supports underneath to keep the form in place.

The crew began spreading the concrete with a garden rake to the approximate height of the final patio, with more concrete being delivered in 30 second intervals.

Step 7: Strike Off the Concrete

Working in small sections, they used a long, straight 2×4 as a screed to strike off the concrete at the form height and maintain the proper slope away from the house. At times the screed may not be able to reach an adjacent form board. In that situation, you can use a hand float to establish a “wet line”. A wet line is a level section of concrete used as your guide for the screed in lieu of a form board.

Tip: The technique for leveling here is somewhat of an art. While not complicated, it is important to maintain the steady downward slope away from the house to avoid small depressions where water could pool on the surface.

Like the original patio, the concrete is at a level with the window wells. Even though Joe’s team could not modify the wells, as noted above, they are confident that water infiltration will not pose a problem because of (1) the well covers to be installed, (2) the patio slope, and (3) the gravel in the bottom of the well for drainage.

Rebar should be located in the vertical middle of the slab. One solution involves placing the rebar on small supports or “chairs.” Instead, Joe’s team levered the rebar with a shovel to bring it off the ground to achieve the same result.

A bull float, made out of magnesium, helps bring the cream to the surface and smooths out lines from the screed process for a better finish. This is an important step in putting a beautiful finish on the concrete.

This is a picture showing how they lightly hammered on the sides of the form to bring out any air bubbles.

And here’s a picture of the jointer and edger tools.

Step 8: Finish Edges and Joints

After a couple hours passed and the concrete had partially solidified, the crew cut a joint down the middle of the slab. This is important, because if the concrete were to crack, it would do so at the joint, and it could be easily concealed. The crew also applied a brush finish to create a textured surface. Otherwise, the concrete would be extremely slippery when wet.

Step 9: Lay the Bluestone

To add some visual interest and make the patio more attractive, the homeowners asked Joe to ring the perimeter in bluestone. To accommodate the bluestone, the crew poured the concrete patio about 1-1/2″ lower around all the edges and grill area. That enabled them to set the stone in a bed of mortar, bringing everything up to the same level.

Tip: Setting a natural stone around your patio can increase visual interest and make the patio look more professional.

Laying bluestone is similar to laying tile in your kitchen or bathroom. You’ll want to decide on a layout, setup guides, work to keep everything at the right level, and fill all the joints afterwards.

Bluestone can be challenging because it’s a natural stone and not always uniform. Each piece is approximately 23-1/2″ square, but there is noticeable variance in size and thickness. Some of the stones even had a slight curve.

The day started by planning the layout with the goal of minimizing the number of cuts and placing cut stones in out-of-the-way locations.

The crew used TYPE S masonry cement, mixing it with sand and water at the job site. TYPE S is a cement rich mixture, suitable for below grade work like retaining walls, brick patios, and more.

It’s really important to get the mortar to the right consistency. If the mortar is too dry, it’s easy to crack the stone while working. If the mortar is too watery, the stone will bond poorly and eventually come loose as the elements take their course.

Tip: The mortar consistency should be “gritty mashed-potatoes.” It should easily stand up, but will ooze some as you work the stone in place.

Beginning at the inside front corner, the crew shoveled a bed of mortar into place.

Each stone was set in place and pressed into the mortar. If the stone ended up too tall, the crew would pull the stone off and scrape away a little mortar. If it was too low, they’d add some. It’s important to check both sides of the stone for the better surface and place that face up.

Tip: While it’s important to get the underlying concrete as uniform as possible, some variation can be absorbed by the mortar.

The crew used a spare 2×4 to gently tamp the stone down, adjusting each corner to ensure it was consistent was the patio and any adjacent stones. This is where a slightly curved stone would be very difficult to set properly, because the whole surface could not be made even with the concrete. By purchasing extra stone, the crew was able to be more selective and eliminate potential problems due to natural variations in the stone.

The crew laid several stones in this fashion, and then setup a string line as a guide for the appropriate height.

To cut the stone, they used a small angle grinder with a diamond masonry blade. It worked well, but created a lot of dust.

This picture shows the inside corner of the house where they cut one of the bluestones to fill the void against the house.

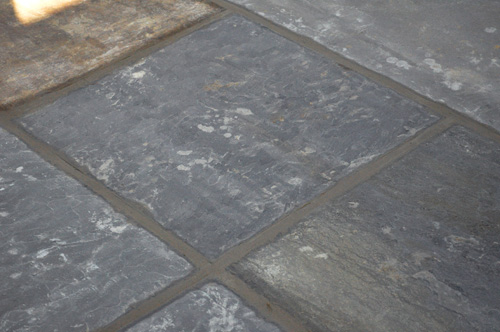

After all the stone was laid, the crew filled and tooled all the joints with a steel blade striker, for a smooth, flat joint.

Tip: Be sure to pack the mortar joint tight, filling any voids.

The crew worked mortar into the joint next to the house and along the exposed edge of the patio.

Joe’s crew was careful to clean up the stone and mortar as they worked.

Tip: Mortar on the stones can be cleaned off with a diluted solution of Muriatic acid (HCl) and a stiff bristled brush. Be careful with HCI, and wear appropriate safety gear when handling the acid. HCI is also used to etch concrete, so be mindful when working near the new slab.

The mortar was dry in about 24 hours. The crew cut the excess Vycor and made one final sweep. The final product looks pretty darn good.

If you enjoyed this article on building a concrete patio, we hope you’ll explore some of our other expert level how-to guides.

We want to express a big thanks to Joe Bianco, president of SDG Home Solutions for allowing us to shadow him during this concrete patio remodel. Thank you to Rick and Patricia, the homeowners, who also agreed to let us participate.

This final step-by-step guide would not be so complete if it weren’t for the questions and comments from regular readers like Jeff, Joe, Paintergal, Icarus, MissFixIt, betterOutdoorLivingatHome, and Todd. Thank you all.
