Edge Jointing Wood Without a Jointer

Edge Jointing Wood Without a Jointer

by Ethan Hagan (email Ethan) | | March 1, 2013 | 14 Comments »

A great part of hanging out with pro contractors and carpenters (like Joe Bianco) is that I can pick their brain for my own projects. I mentioned a new woodworking endeavor, and Joe offered up some good ideas including making sure I properly joint all the wood. The problem is that I don’t own a jointer so I started looking for alternate methods, and indeed, there are ways to edge joint wood without a jointer.

What is Edge Jointing?

If you’re not familiar with the term, edge jointing (or just jointing) is the process of milling a flat, straight edge onto a board. This is an important step because even small gaps, bowing or cupping can eventually cause a glued joint to fail. Jointing both edges ensures full contact along the entire length of the joint and eliminates the need to straighten materials with clamps. You can read a little more about it on Wikipedia.

How to Joint Wood

Jointing is typically achieved using a jointer (pictured) where the in-feed and out-feed tables are parallel and offset at slightly different heights depending on the depth of cut.

jointer2

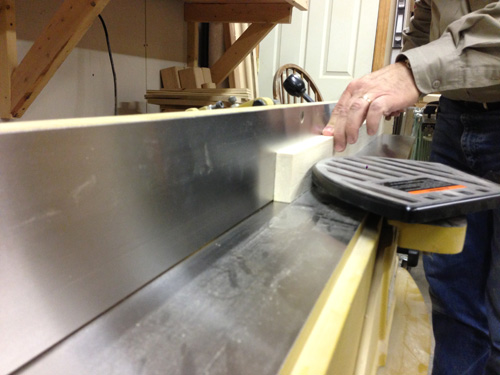

Stock is placed on the in-feed table up against the fence, and a small amount is trimmed as it passes over the cutting head.

jointer

The result is very tight joints with no movement along the entire length.

finished

Jointing With a Table Saw

For best results and if you’re going to be jointing lots of wood, go ahead and spring for a jointer. You can achieve good results with a table saw or router. However, the work is much slower. If hand tools are more your style, pick up a jointer/plane like a Lie-Nielsen no. 7 jointer plane.

Step 1: Calibrate Table Saw

Start by checking and calibrating your table saw. You want to be sure the blade is perpendicular to the table and parallel with the fence.

DSC_0021

I like to use my combination square for checking the blade.

DSC_0022

DSC_0023

Step 2: Plan and Orient the Boards

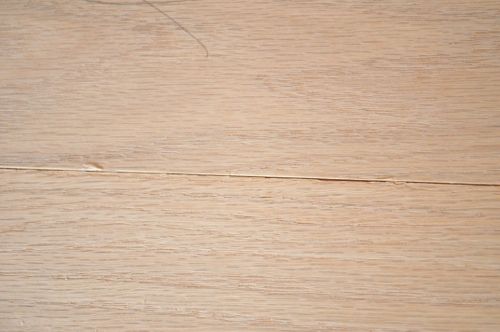

Lay out the boards and label everything so you can check each joint as you work.

DSC_0026

Step 3: Setup a Straight-Edge

For this method, you’ll need a straight-edge that will ride against the table saw fence.

DSC_0024

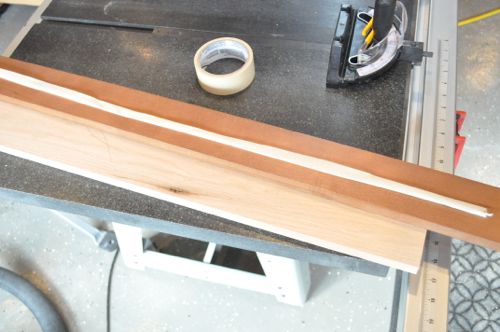

Using tape (preferably double-sided or carpet tape), affix the board to be jointed to the straight-edge.

DSC_0027

Stagger the boards so that only the straight-edge will contact the fence.

DSC_0028

Step 5: Make First Cut

Sliding the straight-edge along the fence, cut away about 1/16″. If you have feather-boards, this is a good time to use them. Cut the board at a constant speed and with a smooth motion. If at any point, the workpiece looses contact with the blade, finish the cut and trim another 1/16″ off the same side.

DSC_0029

Step 6: Cut Opposite Side

Now one side is perfectly straight and flat. Putting the freshly cut side against the table saw fence, cut the opposite side.

DSC_0035

Step 7: Check for Fit (Repeat if Necessary)

I like to check the board for a consistent width. I also line it up with a straight-edge or level and check for any cupping.

DSC_0040

DSC_0038

Most importantly, check how the workpiece fits against its adjoining piece. Look for even the slightest gaps or rocking. If you see any problems along the entire length, joint the edge again.

DSC_0037

Subscribe and never miss an article!

Free articles delivered conveniently to your inbox
(and no spam, we promise)

  • Enjoy this? Share it!

Conversation on This Article

14 Responses to Edge Jointing Wood Without a Jointer

  • Brady responds...
    March 1st, 2013 7:12 am

    Great trick. I would think it might be better if your straight edge was above the board to be jointed so that the jointed board would not roack away from the fence giving a jointed edge that is not perfectly perpindicular to the flat face. Plus, your zero clearance insert can’t do its job of preventing chip out on the under side with that gap between the workpiece and the table. The straight edge would still be able to ride against the fence, but the lip might need to be thinner.

    [Reply]

    Ethan Reply:

    Great comment Brady! I think you’re absolutely right, and I didn’t even think to switch them. The only problem would be if the bottom side of the workpiece isn’t flat in which case you should made sure it’s concave (like a frown) against the table.

    [Reply]

  • Reuben responds...
    March 1st, 2013 9:44 am

    Great tutorial. How do you recommend finding the initial straight-edge? How do you know your straight-edge is straight?

    [Reply]

    jeff_williams Reply:

    You need a reference edge of some kind. A factory edge of plywood/mdf would work or you could test your straight edge on a machined surface like the surface of the table saw or even a machined level. There are also precision straight edges available from various woodworking outlets and online sources but can be pretty expensive.

    [Reply]

  • poiboybf responds...
    March 1st, 2013 12:25 pm

    Hmmm. Seems like it would work if you were careful about keeping the top piece of wood parallel to the top of the table saw. I could see the blade trying to pull down the rip cut as you make it, resulting in a straight, but slightly chamfered, cut. I am sure you avoided this by careful cutting, but to do a lot of wood this way would seemingly be painstakingly slow. Personally:

    Powermatic 8″ Jointer: $2,600.00
    Veritas #6 Fore Plane: $265.00

    Even if you spring for a Lie- Nielsen, seems less pricey and takes up a LOT less space in your shop.

    [Reply]

    jeff_williams Reply:

    The cheapest/fastest option may be the handheld power plane with an edge guide from the likes of Bosch, PC, DW, etc. Just over a $100 and no tuning like a hand plane. Although I often use the power plane to knock down a majority of the material and then fine tune with a vintage hand plane.

    [Reply]

    poiboybf Reply:

    Yeah you’re right. I guess I just prefer not to have one more redundant tool in my shop. Plus, I’ll take plane shavings over power tool dust on the floor any day. Way more romantic/old school.

    [Reply]

    Brady Reply:

    The Powermatic option shouldn’t be used to justify not purchasing a jointer, especially with the alternative you mention. Grizzly has a tabletop jointer (model G0725) with a 6″ blade that runs $235, and I can vouch for quality products from Grizzly. Good fitting, gap-free joints go a LONG way in making the work look great and there are options to get those results without buying Powermatic. Their products may be great, but why buy a Ferrari when you need a Sunday church commuter?

    [Reply]

  • Eek565 responds...
    March 1st, 2013 6:49 pm

    Another method is to build a rather simple jig that rides in the miter groove of the table saw that allows the piece to be clamped to it and then run through the table saw. This is a good method if neither side is particularly straight to reference against a fence.

    [Reply]

  • bigredmachine responds...
    March 1st, 2013 10:39 pm

    I learned several things with this article and the followup comments. Great article as usual.

    [Reply]

  • Icarus responds...
    March 3rd, 2013 9:11 am

    You not owning a Joiner is like Julia child’s not owning a turkey baster

    [Reply]

  • trebor responds...
    March 3rd, 2013 11:31 pm

    Great post Ethan. I’ve never used a jointer but to be honest it doesn’t seem like it’d be necessary. Careful cuts and/or good hand tools can do the job instead. Good tips for the table saw, though.

    Oh…and nice zero clearance insert ;)

    [Reply]

  • supimeister responds...
    March 14th, 2013 5:41 pm

    i appreciate this article. owning a jointer is great but it takes up space and costs $$$… so this is a great alternative if all you have is a table saw…

    [Reply]

  • SW responds...
    March 15th, 2013 7:08 am

    Eek565 is right. There’s more than 1 way to skin a cat. The method illustrated above is painless and very efficient though. Thanks for sharing.
