How to Make an Easy, Accurate Table Saw Sled

How to Make an Easy, Accurate Table Saw Sled

by Ethan Hagan (email Ethan) | | March 12, 2013 | 18 Comments »

I’ve decided to build a few accessories to better utilize my table saw, and my first add-on is a table saw sled. With a sled, making cross cuts is fast, safe and very accurate. Sleds are useful for trimming sheet goods, mitering small pieces, making repetitive cuts and more. I know this sled will come in handy for a lot of projects including one that I’ve recently started (but haven’t written about just yet).

I made my sled in about four hours, and that includes time to “dial in” the sled fence. It slides very smoothly, and I expect to get many good years out of this sled before I need to replace it.

DSC_0076

Tools & Materials

Fred & Kim had some leftover materials from when they redid their kitchen including a panel that would normally be used alongside a refrigerator. The veneer makes for a nice, smooth surface so I used that and some scrap plywood to build my table saw sled. Here’s the full list:

  • 1/2″ plywood (base)
  • 3/4″ plywood (fence and stiffener)
  • Solid maple (runners)
  • 3/4″ wood screws
  • 1-1/4″ wood screws

DSC_0050

Here are the tools you need for this project:

  • Table saw
  • Jigsaw
  • Clamps
  • Straight-edge
  • Drill/driver
  • Countersink bit
  • Framing square
  • Precision shims (from dado set)

Step 1: Cut Base to Size

I started by cutting the plywood panel to size for my base. I cut mine pretty big, and that’s because I need it to handle a 40″ board (for the mystery project). It’s easy to shorten a sled, and I may do that eventually. For now, the base measures 45″ long and 24″ wide.

DSC_0051

Step 2: Cut Runners

Runners are the thin boards that slide through the miter gauge slots. Sometimes you’ll see sleds with only one runner, and they’re easier to make because you don’t have to worry about the sled binding up. However, sleds with only one runner aren’t as steady so I recommend two runners.

Maple is a relatively hard wood which makes it a good choice for the runners. Another remnant from the kitchen remodel was a solid piece of maple, and I used a hand planer to fine tune the thickness. I wanted both runners to be snug but still allow the sled to move freely.

After I was satisfied with the thickness, I ran the board through my table saw to make the runners.

DSC_0052

Don’t assume your miter slots are perfectly identical. Measure and cut the runners independently, and label the them after you finish. The goal is for each runner to be flush with the table top and able to slide but without wiggle room.

DSC_0053

DSC_0054

Step 3: Attach Runners

I set my runners in the miter slots and positioned the plywood base overtop. I used the table saw fence to keep everything aligned. Using a straight edge, I marked lines for drilling holes.

DSC_0060

I predrilled five holes for each runner and used a countersink bit so the screw heads would be below the surface.

DSC_0061

To attach the runners, I used 3/4″ wood screws. At this point I checked the sled to see how easily it moved, and I was pleased to find a smooth motion without any wobbling.

DSC_0062

Step 4: Build the Fence

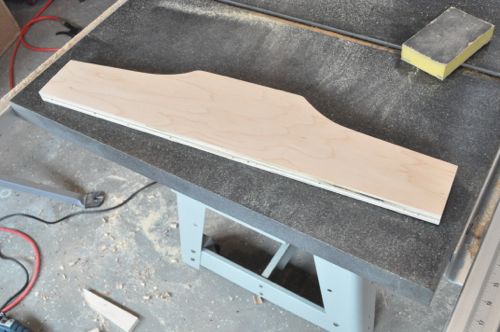

I made the fence from 3/4″ plywood, and it measures 5″ tall at the middle. I cut a gentle slope which makes it easier to clamp stop-blocks or the workpiece.

DSC_0055

DSC_0059

Step 5: Attach Fence

Before attaching the fence, I set the runners in position and made a kerf cut almost the entire length of the sled.

DSC_0063

Using a framing square, I set my fence perpendicular to the cut and held it in place with two clamps. Next, I drill and countersink two 1-1/4″ screws, one at each end.

DSC_0064

Step 6: Calibrate the Fence

To fine tune the sled fence, I grabbed my framing square again and set it against the fence alongside the blade. Right next to the fence, you can see everything looks good.

DSC_0065a

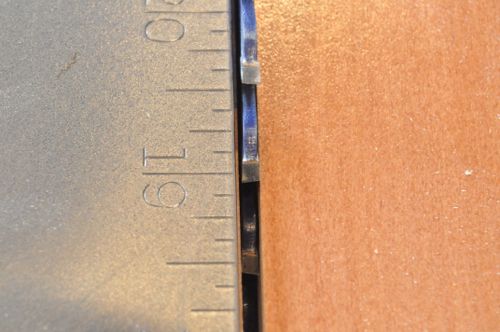

However, at the other end of the square, it looks like the fence is off by about 1/16″.

DSC_0066

To fix that, I started by clamping a block to the base of the sled right up against the fence. Next, I removed the screw holding that side of the fence so that it would pivot. The shims from my dado stack are super thin (0.004″), and I shimmed the fence until it was aligned along the entire length of the square.

DSC_0067

DSC_0068

When I was satisfied, I clamped the fence tight to the block and drilled a new screw hole.

DSC_0070

After another quick check, I add three more screws to lock the fence in place.

DSC_0069

Step 7: Add Fence Supports

With a sled, you’re pushing and pulling on the fence all the time. To make sure it didn’t move, I added a couple of support blocks.

DSC_0071

Step 8: Attach Stiffener

The stiffener board spans the kerf cut and holds the sled together. It doesn’t need to be perpendicular to the blade so I just mounted it flush with the edge of the base.

DSC_0072

Step 9: Complete Kerf Cut and Test

I set my table saw blade to about 1-1/2″ above the sled and completed the kerf cut. As before, the sled moved well so I didn’t need to make any adjustments to the runners, and I haven’t even waxed the sled yet.

If there was any problem, I would have scribed a thick line on each side of the runners. Moving the sled back and forth through the miter slots would reveal where it was rubbing, and scraping the runner with a chisel would have eliminated the problem areas.

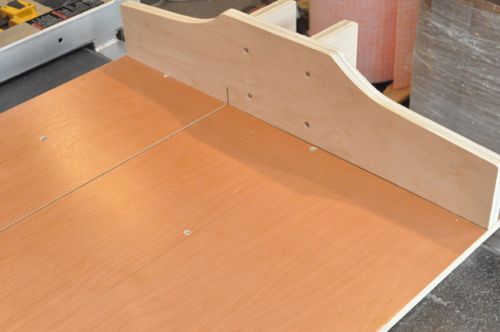

DSC_0079

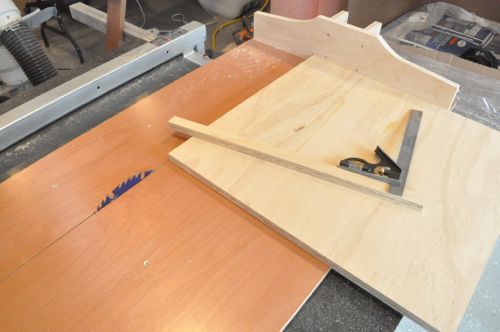

To be absolutely certain the fence was properly aligned, I used the 5-cut squaring method. I first read about this method on The Wood Whisperer, and he references a helpful flash animation showing how it’s done. In short, this method involved a sequence of cuts that will magnify any error so the fence can be dialed in to a thousandth of an inch.

DSC_0076

My only limitation is that I don’t own a digital caliper so I had to make do with a combination square. Even so, I estimate my sled is accurate up to 0.0039″ per foot, and that’s just fine by me.

DSC_0075

I’m excited to put the sled to use, and you’ll be hearing more about it when I unveil my most recent woodworking project.

DSC_0077

DSC_0074
