Run Decking Boards Perpendicular to a House (Parallel to the Joists)

November 11, 2009 | by Fred (email) |

On most decks, the decking boards run parallel to the house and across the joists (either perpendicular or at a 45 degree angle). But what if you want to run the decking boards perpendicular to the house, going straight out from a back door? While uncommon and a bit more difficult, achieving this look is possible.

Why Decking Boards Usually Run Parallel to a House?

Let’s start with this question: Why do decking boards usually run parallel to a house in the first place?

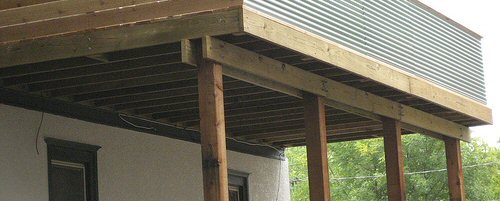

The reason is that in standard installations, a ledger board is mounted to the rim joist of the house and flashed to prevent water from leaking into the house. Joists hanger are attached to the ledger board so that the joists can be run perpendicular to the house out to a girder where the joists rest, as shown in this photo. Decking boards are installed across the joists (either at a 90 degrees or 45 degrees to the joists), eliminating the possibility for installation at a right angle to the house.

traditional-deck-design

There are two ways to change this deck design to allow for perpendicular decking board installation.

Install Two Sets of Girders Perpendicular to the House

The first way to change the design is to install two sets of girders perpendicular to the house (rather than one parallel to the house). The girders will rest on posts similar to those in the picture above. Joists rest on top of the girders and run parallel to the house. Rim joists cap both ends of the deck and the joist closest to the house is also fastened to the house using through-bolts. This joist functions like a ledger board, but it provides only lateral stability since other joists do not hang from it. This essentially creates a freestanding deck that is attached to the house on one side.

The disadvantage of this setup is that the girders must run all the way to the edge of the last joist, and posts will be required close to both the house and the outer edge of the deck (no more than 2 feet away). Construction is usually more expensive because more posts are required since the house cannot be used as a support.

Install 2×4 Blocking Between the Joists

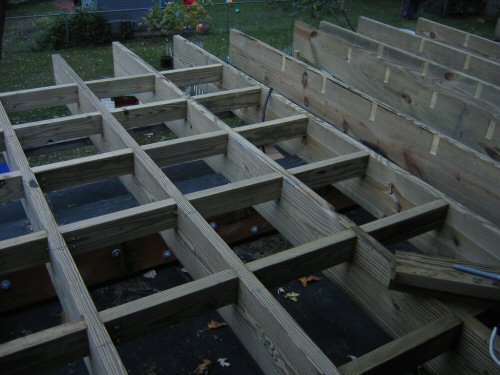

Another innovative approach is to install 2×4 blocking between the joists. CTD 2005 posted some excellent photos of their deck that employs this methodology.

deck-joists-designed-for-parallel-decking-surface-installation

Construction begins like a standard deck, with ledger board fastened to the house and joists running perpendicular. Each joist is routed on the sides every 16 inches on center, 1/16″ deep in the shape of a 2×4. The 2x4s are pocket-hole screwed into the joists (using a tool like the Kreg Jig K4).

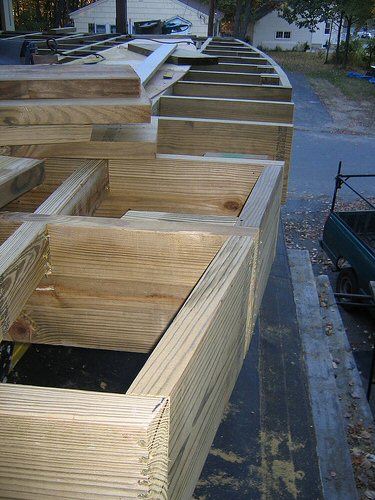

The result: the ability to run decking boards perpendicular to the house. This method also preserves the ability to put a rounded front on the deck (as CTD 2005 did).

curved-front-deck

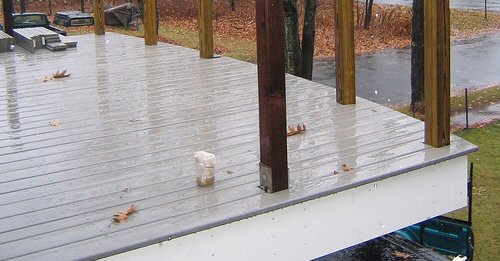

And here’s a picture of the (almost) final product, that also includes deck railing posts fastened inside the rim joist (our preferred method for installation).

decking-perpendicular-to-the-house

Contact a Structural Engineer for Deck Design

Remember, if you’re planning on building a deck, you should always contact a licensed structural engineer prior to construction to confirm the safety of the deck design. Hundreds of decks collapse every year due to poor construction. Don’t be a victim! Get the plans approved first.

photo credit: RO/LU for the standard deck in the first picture; and CDS 2005 for the last three.

7 Responses
  1. Keith says:

    Great write up Fred! Personally I prefer deck boards to run parallel to the house, but hey, that is just my preference and maybe because I have built so many that way, and it saves a ton of labor and materials. It is nice to see people think outside the box when designing decks though and I must say I like to see diagonal lines built into decks and hardwood floors.

    Keith

  2. Keith says:

    PS: Stumbled it for you too!

  3. Todd says:

    Great pointers Fred. I’m with Keith….I prefer that the decking run parallel to the house.

  4. Derek says:

    Ours run perpendicular to the house. We made the deck self supporting (ledger just gives lateral support). I didn’t want to add anymore weight to our sub-standard 1920’s foundations.

  5. Fred says:

    Derek – I’ve seen this in a few designs.. I think the look straight out from the door is good, especially for certain shapes of decks. We compromised and went with a diagonal layout. We still built a free standing deck with two sets of posts for added stability, too (a set close to the house and one further back).

    Todd, Keith – I think its natural to want a parallel layout, especially with siding, since it creates a mirror effect visually. What I don’t like about most parallel layouts is that you have butt joints when the deck is too long. I prefer the diagonal layout as a compromise.

  6. Todd says:

    I actually agree with you Fred. Diagonal decking is the best looking and it’s actually the least wasteful. You can adjust the angle slightly to minimize the waste.

  7. Keith says:

    I love diagonal lines in just about any design, especially on decks but also on interior layouts with diagonal walls mixed in to break up parallel and perpendicular lines.
