Total Kitchen Remodel: Tile, Grout, Cabinets and Countertops

January 3, 2013 | by Ethan (email) |

I hope you all had a great, relaxing holiday and a happy new year. I enjoyed the hiatus from OPC and The Better Half, and now I’m eager to get back to business. I’m excited for what 2013 holds and to continue bringing you top-notch Pro-Follows with local professionals.  You can even expect to meet one or two new contractors in the coming days as we seek to expand our network to different trades.

Our current Pro-Follow, with contractor Joe Bianco and the kitchen remodel is moving along, and today’s update is going to cover a lot of ground. Since we last left off, the tile has been laid and grouted, cabinets have been installed, and the countertops were installed yesterday!

Tile

By now you should recognize Jim from Diamond Tile located here in Maryland. Jim tackled evening the subfloor and installing Schluter Ditra underlayment (not to mention previous Pro-Follows). The homeowners selected a beautiful Italian tile and had Jim install it in a broken joint pattern.

Pro-Talk: Broken joint pattern is also sometimes called subway or running brick.

Here’s a look at Jim getting started with the grout, and if you’re interested in learning more, read our Project Guide on How to Grout Tile.

DSC_0034

For most tile applications, Jim doesn’t advise any sort of grout sealer. However, in high-traffic areas like a kitchen, Jim uses Grout Boost in place of water when mixing the grout. Grout Boost is designed to repeal dirt, stains, liquids and oils to better protect the grout.

DSC_0038

DSC_0036

After a few passes with a sponge, the tile is clean and the grout looks great!

DSC_0044

DSC_0046

DSC_0037

Cabinets

Joe and his crew got all the cabinets installed just before Christmas, and here’s how the kitchen looked the morning of the install.

DSC_0011

The cabinets are maple with shaker-style fronts.

DSC_0012

The guys got started by moving each base cabinet into place.

DSC_0013

DSC_0015

The guys checked all the cabinets for level front-to-back and side-to-side, shimming when necessary. When they were satisfied, they drilled and screwed the face frames together.

DSC_0025

After locating studs, the guys anchored the cabinets to the walls.

Pro-Tip: If possible, Joe prefers to add blocking between studs for attaching wall and base cabinets. That didn’t happen in this remodel because the drywall was never replaced.

DSC_0023

DSC_0024

A piece of filler is useful where cabinetry meets a walls because it can be scribed to match the contours of the wall. Also, it provides the necessary space to allow doors and drawers to fully open.

DSC_0019

Here’s a look at a piece of filler being nailed to the side of the pantry cabinet.

DSC_0020

The sink sits caddy-corner, and the guys used filler to “turn the corner”.

DSC_0026

DSC_0029

The installers also added a nailer to the top of the wall cabinets to make it easier to attach the crown molding. Needless to say that made this floor to ceiling pantry cabinet a tight fit!

DSC_0022

DSC_0018

DSC_0091

Granite

The granite countertops were installed yesterday, and if they look familiar it’s because that’s the same variety that was installed in the basement remodel. Apparently Cashmere White is a very popular choice.

DSC_0093

Despite that these countertops were templated beforehand, they were a little long and to account for the excess, the installers cut away some of the drywall. The installers marked the top of the countertop with a knife.

DSC_0095

Then the guys moved the countertop out of the way and cut away the drywall.

DSC_0099

The result is enough room to position the countertop and the cut edge is concealed with caulk.

DSC_0103

These countertops have one joint, and it was interesting to watch how the installers joined the two pieces.

DSC_0106

DSC_0107

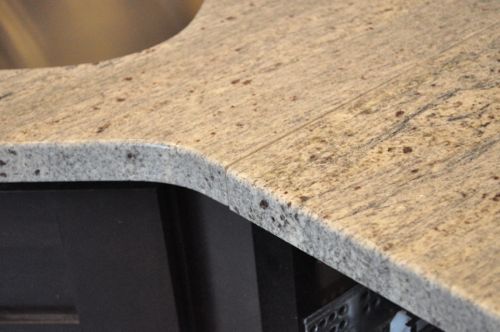

First, they positioned each piece of granite, and as you can see it required shimming.

DSC_0111

The guys also placed a shim between the two pieces to provide a small space.

DSC_0115

The installers mixed up some epoxy and pressed it into the joint.

DSC_0117

DSC_0120

Next, the guys removed the shim separating the two pieces of granite and attached a vacuum cup to pull the countertop tight against the adjacent piece.

DSC_0122

DSC_0123

After the epoxy dried, the excess was cut away with a razor blade. The installers used a series of polishing pads to ensure a perfect transition along the edge of the countertop.

DSC_0128

DSC_0140

The guys used clear silicone where the granite and cabinets met. They used a white, paintable caulk along the walls.

DSC_0126

DSC_0125

DSC_0136

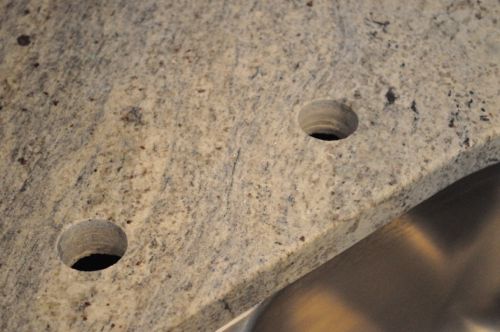

Next, they attached the sink to undermount brackets and cut the holes for the faucet and dispenser.

DSC_0130

DSC_0134

DSC_0135

Lastly, the guys drilled holes for plugs and screws to attach the dishwasher.

DSC_0131

DSC_0133

DSC_0139

This kitchen is just about finished. The plumber is scheduled for today to connect the refrigerator water line, dishwasher, faucet and disposal. Joe also has some trim to complete and a few odd-n-ends. Look for a final walkthrough and recap soon!
